Android Motherboard Box — 20-Node Phone Farm Chassis
20-node Android motherboard chassis — screen, battery, camera and SIM slot removed; USB or OTG/LAN group control for group-control and testing workflows.
For: Integrators and labs running 20–100+ Android nodes with low power per box.
- 20 boards/box
- 220V ~100W
- 55x38x16 cm
- USB + OTG/LAN
- 1 PC -> 3-5 boxes
$899USD list · USDT checkout
In stock (10 available)
Chassis list price for 20-node Android motherboard box (55x38x16 cm, USB + OTG/LAN). Motherboard model and ROM scope confirmed on RFQ before bulk orders.
Online checkout (3 standard SKUs only)
- Click Checkout — sign in or register (free account).
- Send exactly the USDT amount shown at checkout (1:1 with USD list price) on Tron TRC20 within 30 minutes.
- Automatic on-chain verification when enabled; otherwise manual confirmation by sales (include order number + tx hash).
Bulk, OEM or custom ROM? Submit RFQ instead — most SKUs are quote-based.
For confirmed bulk orders, payment methods can be discussed with sales, including USDT when applicable.
Overview

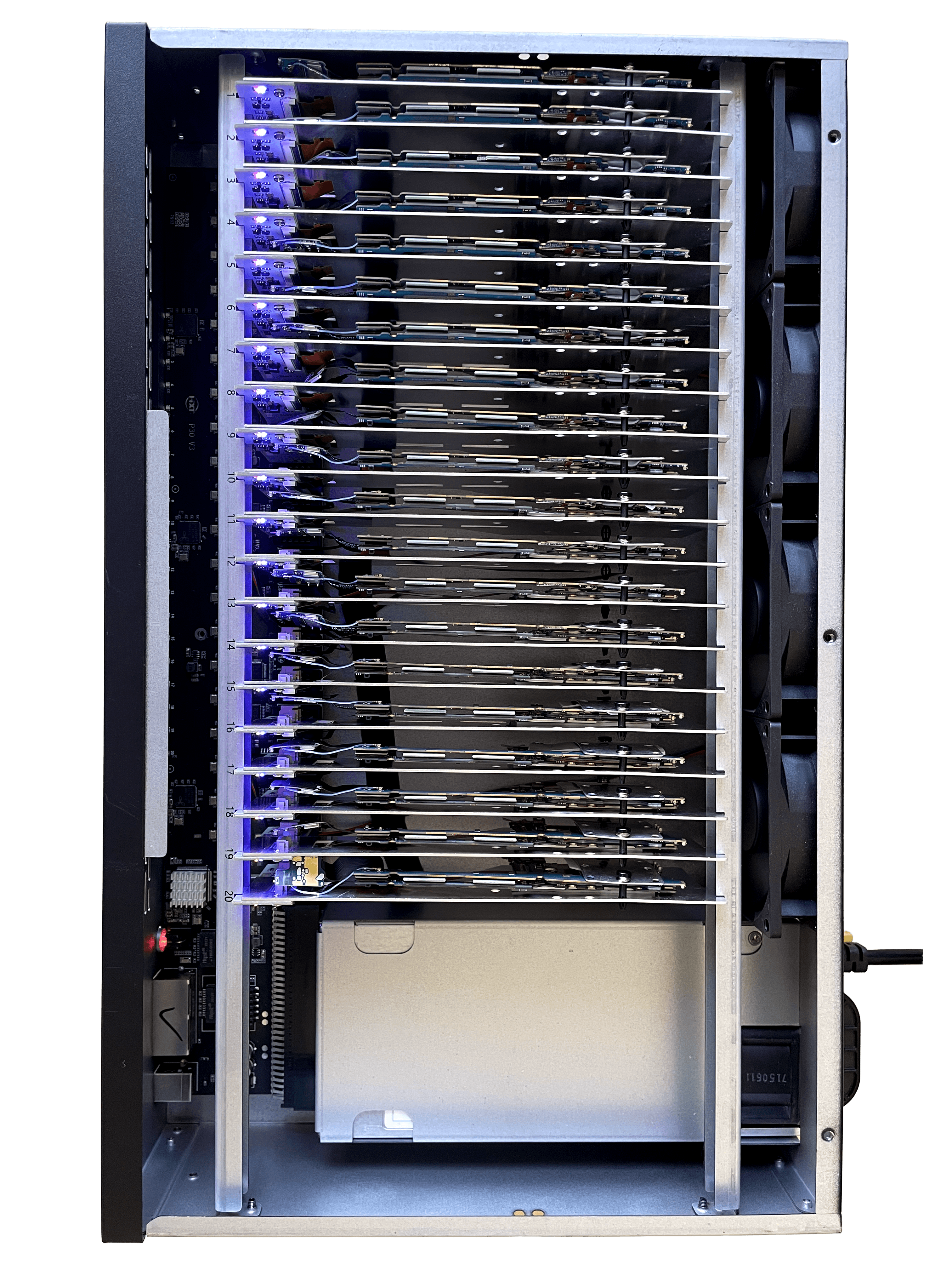

The motherboard box removes the phone screen, battery, camera and SIM slot, integrates boards into a metal chassis and works with group-control software for batch or individual device operation. One box contains 20 mobile phone motherboards in a fixed-size enclosure. One Windows PC typically controls 3–5 boxes (60–100 nodes). Operate all devices at once or run different tasks per phone. Voltage 220V; ~100W when running under continuous load. VPN or proxy methods can change IP per device. Ethernet OTG/LAN and USB modes are switchable (blue LED = USB/WiFi, green LED = OTG/LAN). Carton 55×38×16 cm, ~7 kg — compact and stackable.
What Are the Applications of Motherboard Box Farming?
Motherboard box farming supports any online project that mobile phone users participate in — when operated within platform terms and applicable law. Common professional applications include multiplayer game testing, live streaming infrastructure, business marketing workflows, software application testing, QA automation and multi-device monitoring. The chassis lets one workstation manage hundreds of devices through stacked boxes and group-control software.
Why Choose Our Motherboard Boxes?
Factory-direct assembly from Guangzhou with slot-level QC, FRP-unlocked boards, dedicated provisioning workbench and export packing. We engineer for continuous operation: stable power distribution, cooling airflow and USB/Ethernet routing verified before shipment. ROM customization aligns boards to your automation stack. Remote setup via AnyDesk included with hardware orders.
Key Specifications
Factory parameters for procurement review.
| Capacity / Nodes | 20 Android motherboards per box (fixed count) |
| Device Type | Motherboard only — screen, battery, camera, SIM slot removed |
| Connection Mode | USB 2.0 + OTG/LAN Ethernet (switchable) |
| Power | 220V AC, ~100W under continuous load |
| Carton Size | 55 x 38 x 16 cm |
| Weight | ~7 kg |
| PC Control | 1 PC controls 3–5 boxes (software dependent) |
| HS Code | 8471609000 (export reference) |
| PC Requirement | Windows 10/11; E5-2680 V2 class or better for 3–5 boxes |
| Router Requirement | Soft router recommended for 20+ OTG/LAN devices |
| Customization | ROM mod, auto-boot, ADB auto-detect, OEM silkscreen |
Buyer essentials
Dimensions, warranty, packaging, remote setup and after-sales — common procurement questions.
What are the device dimensions?+
Android Motherboard Box (20 nodes): carton 55 x 38 x 16 cm. Motherboard box (20 nodes): 55 x 38 x 16 cm carton. 32PCS box: 62 x 42 x 22 cm. 12PCS array: 48 x 36 x 18 cm. iPhone and OEM cabinets are quote-based. Full table on each product page and /pricing.
How much does each box weigh?+
Android Motherboard Box (20 nodes): ~7 kg. Approximate export weight: motherboard box ~7 kg; 32PCS box ~12 kg; 12PCS array ~6 kg. Bulk orders may ship on pallets - carton count and gross weight on proforma invoice.
What is the power consumption?+
Android Motherboard Box (20 nodes): ~100W continuous load at 220V AC. 220V AC input. Typical continuous load: ~100W (20-node motherboard box), ~160W (32PCS box), ~60W (12PCS array). Actual draw depends on workload, mirror count and ROM. We size power strips and PDU in OEM quotes.
What voltage is required?+
Standard factory config is 220V AC (China export). For 110V regions we can discuss transformer or regional PSU options in RFQ - confirm destination country before production.
Which phone models are supported?+
Android: mainstream Samsung and other boards subject to supply - we confirm model list in quote. You can specify target model in RFQ. iPhone: custom quote per model and iOS version. Full phones or bare motherboards supported on 12PCS array.
How many boxes can one PC control?+
Android Motherboard Box (20 nodes): 1 PC -> 3-5 boxes (60-100 nodes). Typically 3-5 Android motherboard boxes (60-100 nodes) per Windows PC depending on CPU, RAM, USB controllers and connection mode. USB mode uses more host resources than OTG/LAN. 32PCS boxes: plan 2-4 per PC. We provide a written PC spec when you share target node count.
How long is delivery / production time?+
Android Motherboard Box (20 nodes): 3-5 business days (standard config in stock). Standard in-stock config: 3-5 business days after payment confirmation. Custom ROM: 7-15 days. OEM cabinet: 7-30 days. Express freight 3-7 days; sea 15-30 days from Guangzhou. Exact schedule on proforma invoice.
How is hardware packed?+
Each chassis is foam-lined inside a reinforced export carton. Commercial invoice and packing list included. Bulk orders: multiple cartons per shipment; pallet + stretch wrap available on request. No bare loose boards in shipping.
How long is the warranty?+
Chassis / cabinet: 12 months. Motherboards: 90 days. Accessories (fans, cables, hubs): 12 months. Unauthorized modification, misuse and normal wear excluded. Terms on proforma and /terms.
What if a board or fan fails?+
During warranty: contact sales with order number and photo/video of the fault. We provide remote AnyDesk diagnosis first. Confirmed hardware defects: spare board, fan or cable shipped (freight per agreement) or slot repair guidance. Out of warranty: replacement parts quoted separately - see Replacement Parts service.
Can I get photos before shipment?+
Yes - on request we share factory photos, burn-in status, carton packing photos or short packing video before dispatch. Ask in RFQ or confirm with sales after PO. Remote AnyDesk inspection before bulk payment also available when arranged.
Do you offer remote installation?+
Yes. Basic remote setup via AnyDesk is included with hardware orders: power-on check, USB/OTG mode, ADB authorization, group-control software list and first batch operation. Schedule within 5 business days of hardware arrival. Advanced API integration quoted separately.
Procurement & export terms
- MOQ
- 1 box (sample); bulk discounts from 5+ boxes
- Lead time
- 3-5 business days (standard in stock)
- Packing size
- 55 x 38 x 16 cm export carton
- Gross weight
- ~7 kg per carton
- Voltage
- 220V AC
- Warranty
- Chassis / cabinet: 12 months. Motherboards: 90 days. Fans, cables, hubs: 12 months.
- Shipping method
- From Guangzhou, China — express air (DHL/FedEx) typically 3-7 days; sea freight 15-30 days. Commercial invoice and packing list included. Import duties paid by buyer.
- Payment process
- Standard SKU: checkout with account -> USDT TRC20 within 30 minutes -> factory confirms and schedules production. Bulk/OEM: proforma invoice first.
Capabilities
- Compact 20-node density — stackable metal chassis for warehouse or rack deployment
- 3-cooling-fan system for continuous 24/7 operation
- Dual connection: USB mode (blue indicator) and OTG/LAN mode (green indicator)
- Mod ROM: auto power-on, auto ADB recognition, compatible with common market tools
- One operator controls 20 phones per box; batch or individual tasks via group-control software
- Compatible with group-control software, mirroring tools and WebSocket API after ADB authorization
- QC burn-in before shipping; remote AnyDesk setup support available
Use cases
- Software application and game testing
- Multi-device automation and QA workflow operations
- Live streaming and content creation device pools
- Business marketing and multi-account management (lawful use)
- App compatibility and QA testing at scale
- Batch device provisioning and firmware validation
- Enterprise device operation workflow testing
Deployment notes
- Use Windows 10/11; uninstall conflicting phone assistant apps
- Place ADB authorization files before first mirror session
- Do not casually reset OS or disable developer options
- For OTG/LAN: box and PC on same router segment; scan IP range
- Monitor USB resource limits - use powered USB 2.0 hubs if expanding
Product FAQ
How many boxes per PC?+
Typically 3–5 boxes per PC (60–100 nodes) depending on CPU/RAM and software. E5-2680 V2 multi-core or equivalent recommended. Share your target count for a written PC spec.
USB or OTG/LAN?+
USB is simpler for small setups. OTG/LAN scales better beyond ~20 devices on one network segment. Both modes switchable on the box.
Dimensions, weight and power?+
Carton 55 x 38 x 16 cm, ~7 kg. 220V, ~100W continuous load at 20 nodes.
Which Android models?+
Mainstream Samsung and other boards subject to supply — we confirm exact model list in written quote before production.
Can one person control all 20 phones at once?+
Yes — group-control software supports batch operations on all nodes or individual control per device.
Photos before shipment?+
Yes — burn-in and packing photos or short video on request before dispatch.
What if a board fails?+
Warranty: remote diagnosis then spare board or repair guidance. Out of warranty: replacement parts quoted separately.
Does it work with group-control software?+
Yes. After ADB authorization, common group-control and batch device tools connect via USB or OTG/LAN. We assist with first-time setup.
Can I change IP per device?+
Yes — VPN or proxy tools per device are supported when your workflow requires IP rotation.
What's included
- Metal chassis with 20 motherboard slots
- Power cable (220V)
- USB data cables per node
- Spare motherboard power leads
- Setup guide + remote support contact
Customization
- Motherboard model (Samsung and others - subject to supply)
- Mod ROM: auto power-on, ADB persistence
- Chassis label / silkscreen OEM
- Router/switch bundle for OTG/LAN deployment
Warranty & delivery
- Chassis warranty: 12 months
- Motherboard warranty: 90 days
- Custom-assembled units: no return after dispatch (see Manual)
- Foam export packing; pallet option for bulk
- Pre-shipment photos/video on request
- Remote AnyDesk setup included
